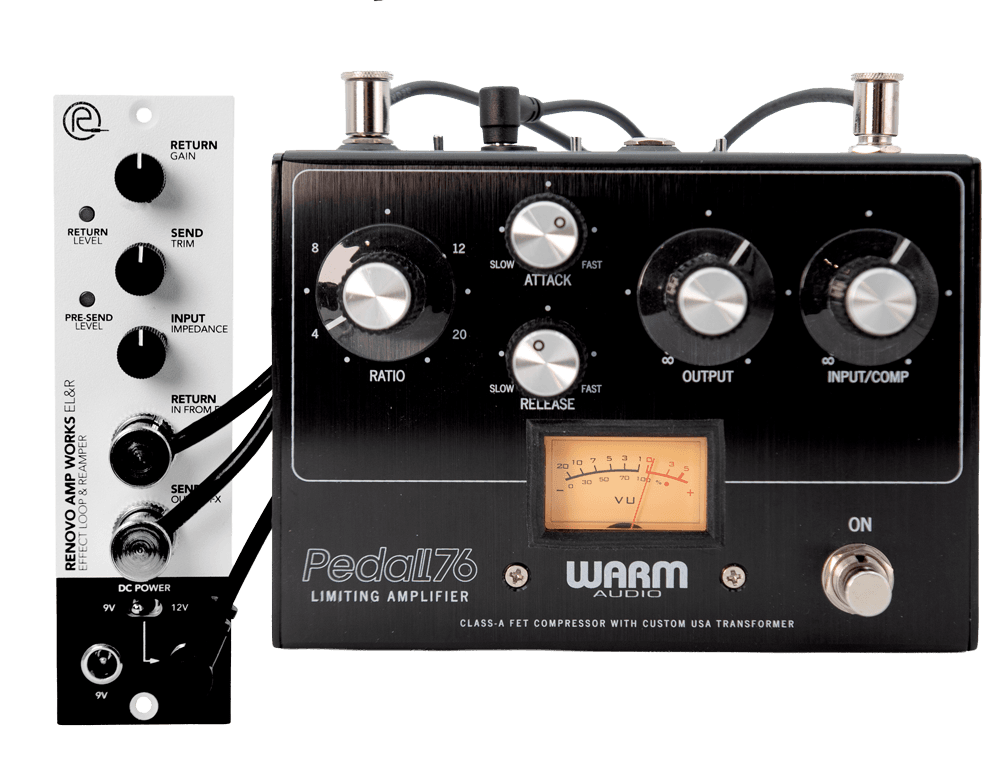

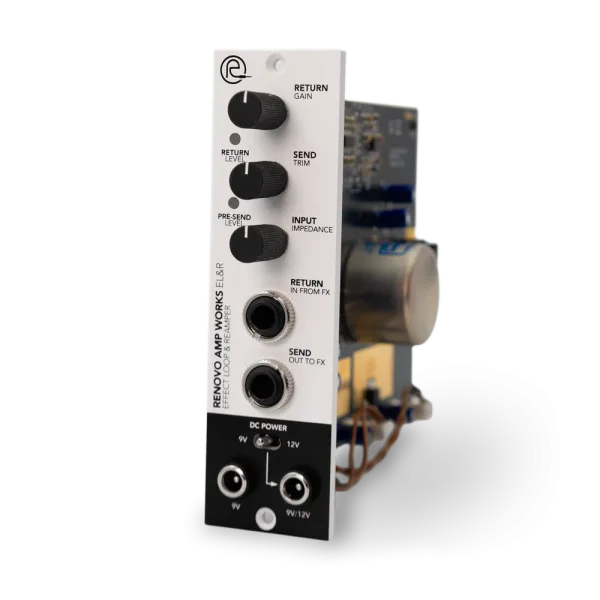

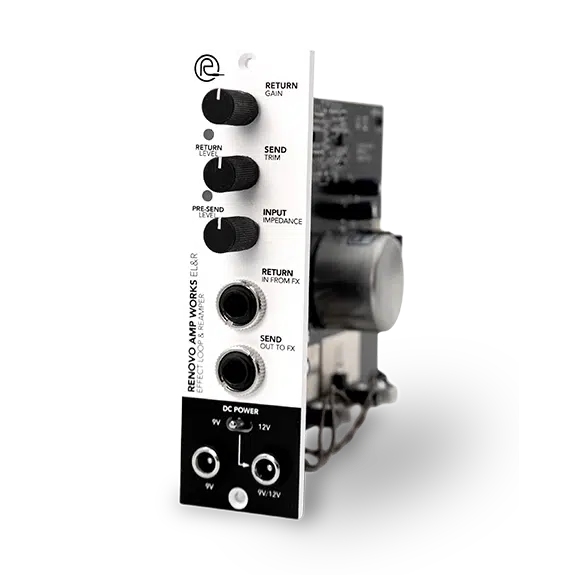

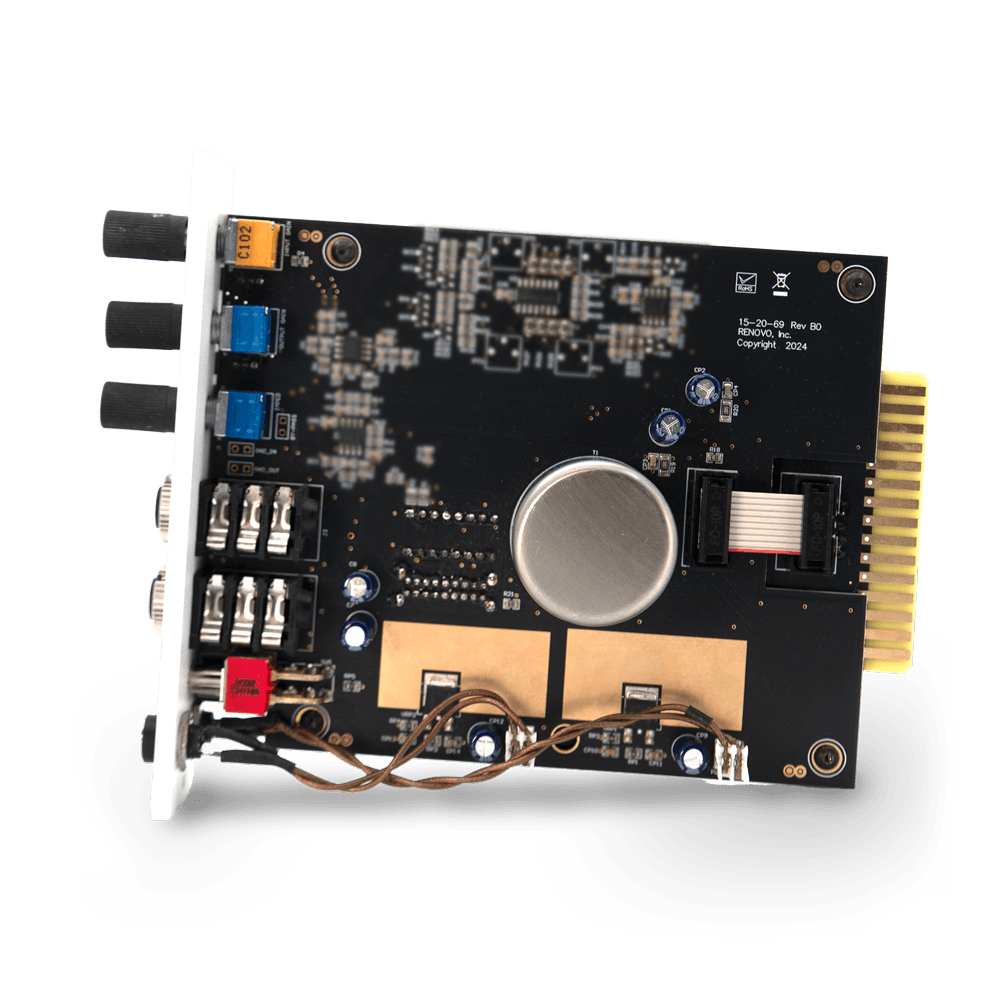

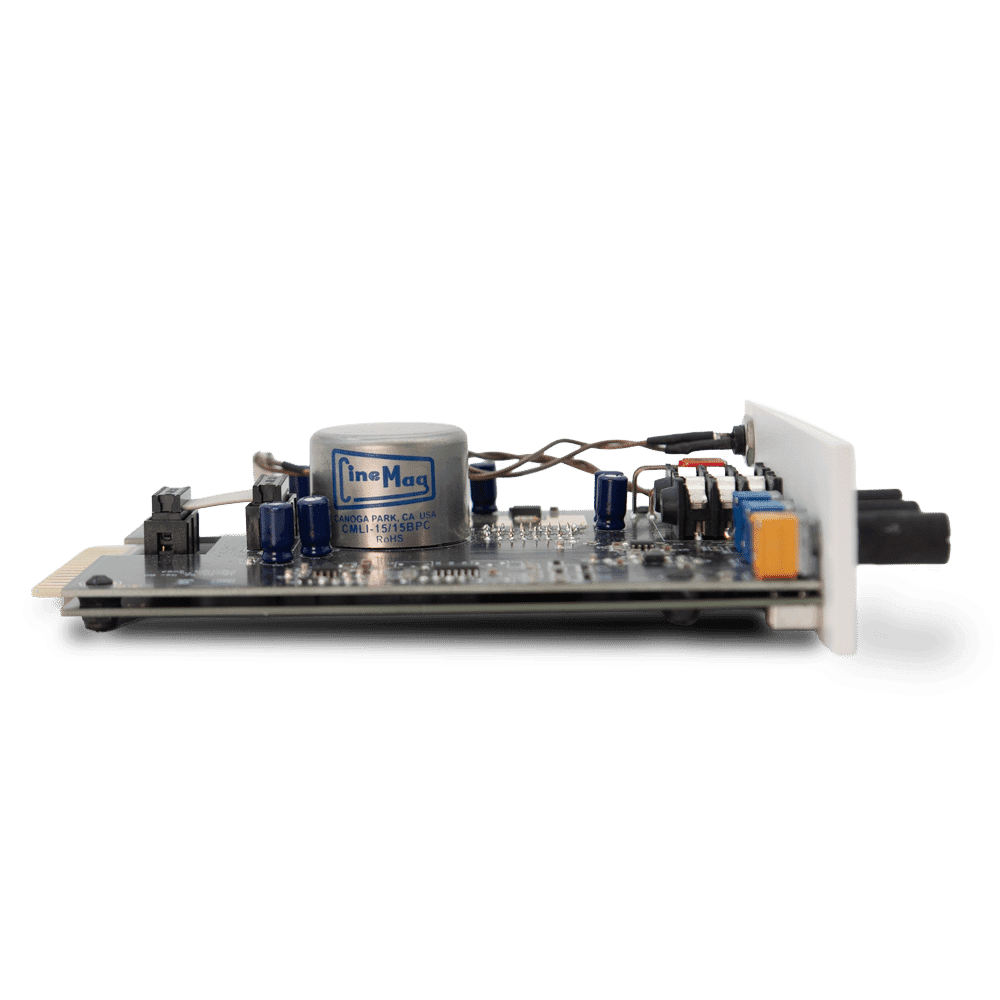

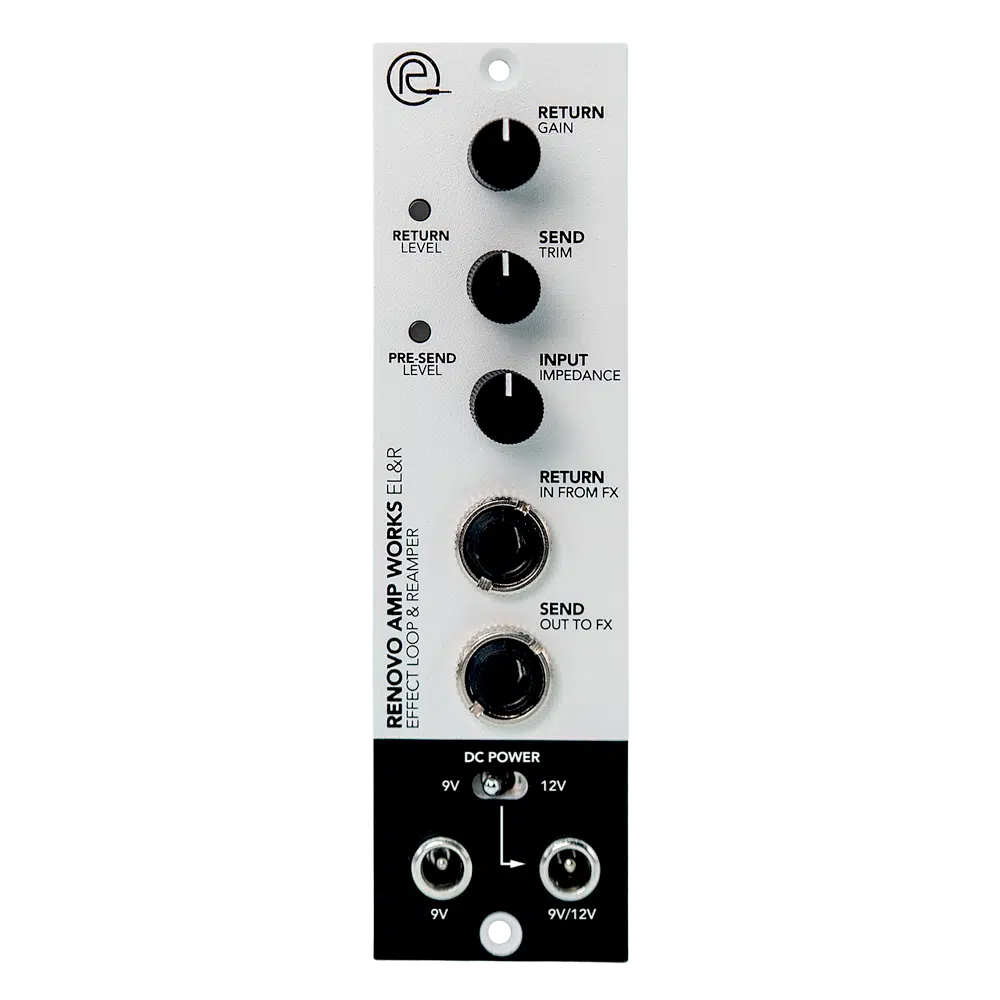

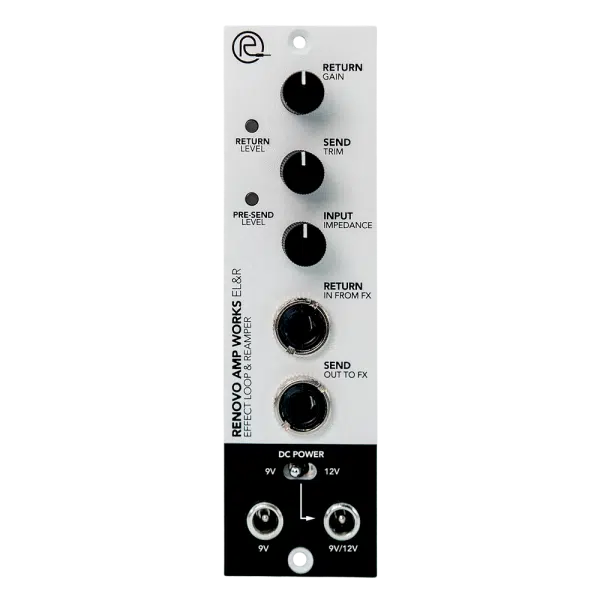

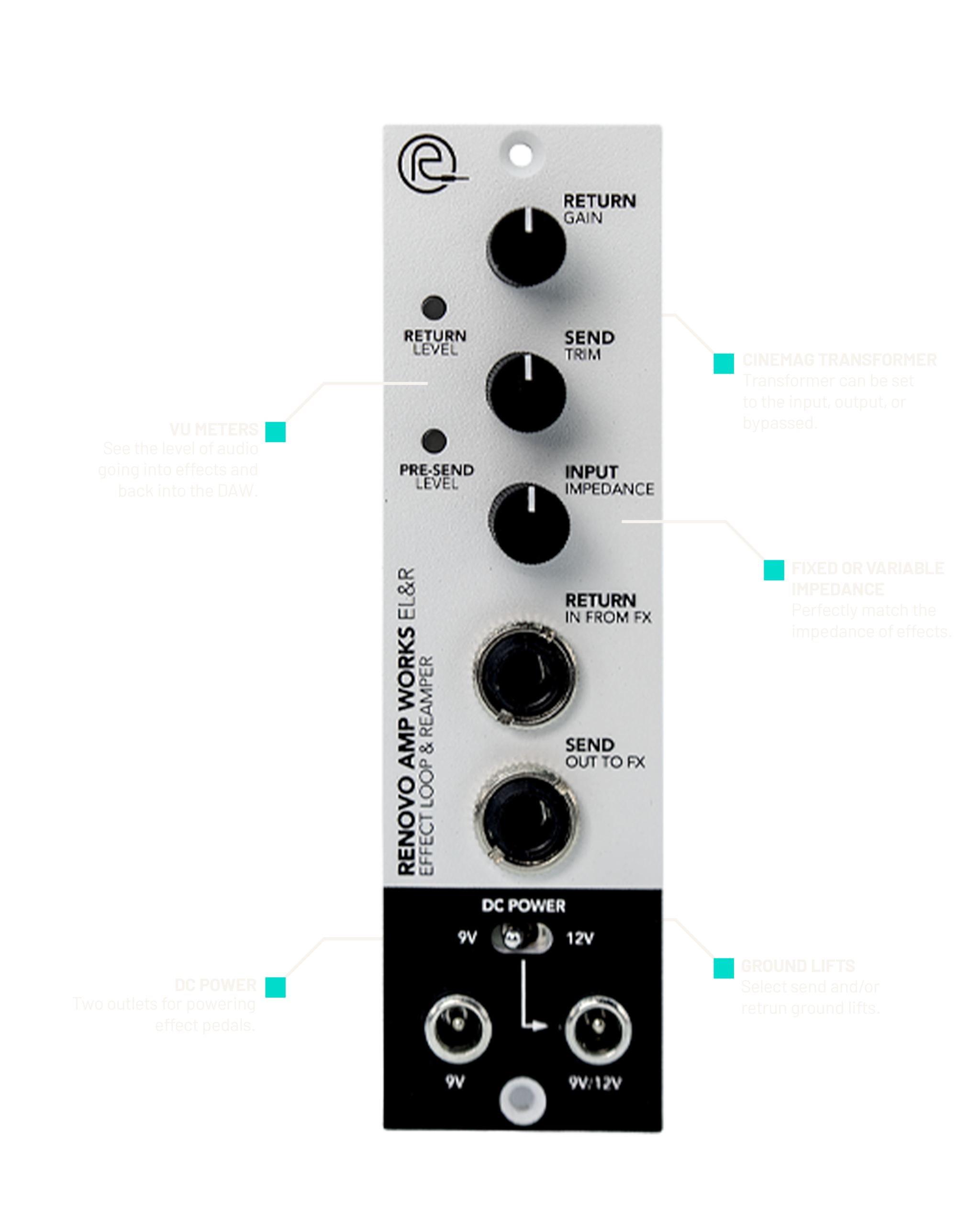

The EL&R 500 is an Effects Loop and Reamper for 500 series racks. It allows you to Reamp a track by providing transformer coupled outputs that you can plug into your amp for mic'ed reamping. It also works as an Effects Loop, putting your pedalboard directly into the recording chain. The EL&R adds transformer warmth, provides two DC power outputs for your pedals, and gives you variable impedance matching.

Yes. The EL&R is a 500 series module — you'll need a compatible rack like the API Lunchbox, Radial Workhorse, or Neve 8804. Most racks will work.

Any standard effect pedal. Fuzz, reverb, delay, overdrive, chorus, phase... you name it!

Yes. There are two regulated DC power outputs on the front panel. One fixed at 9V and one switchable between 9V and 12V. No wall warts needed.

Any standard 500 series frame. API 500 Series, Radial Workhorse, Neve 8804, Lindell 506, and others all work.

Minneapolis, MN and Summerville, SC. Every unit is assembled and tested by hand before it ships.

One year from date of purchase. Email [email protected] if something goes wrong.

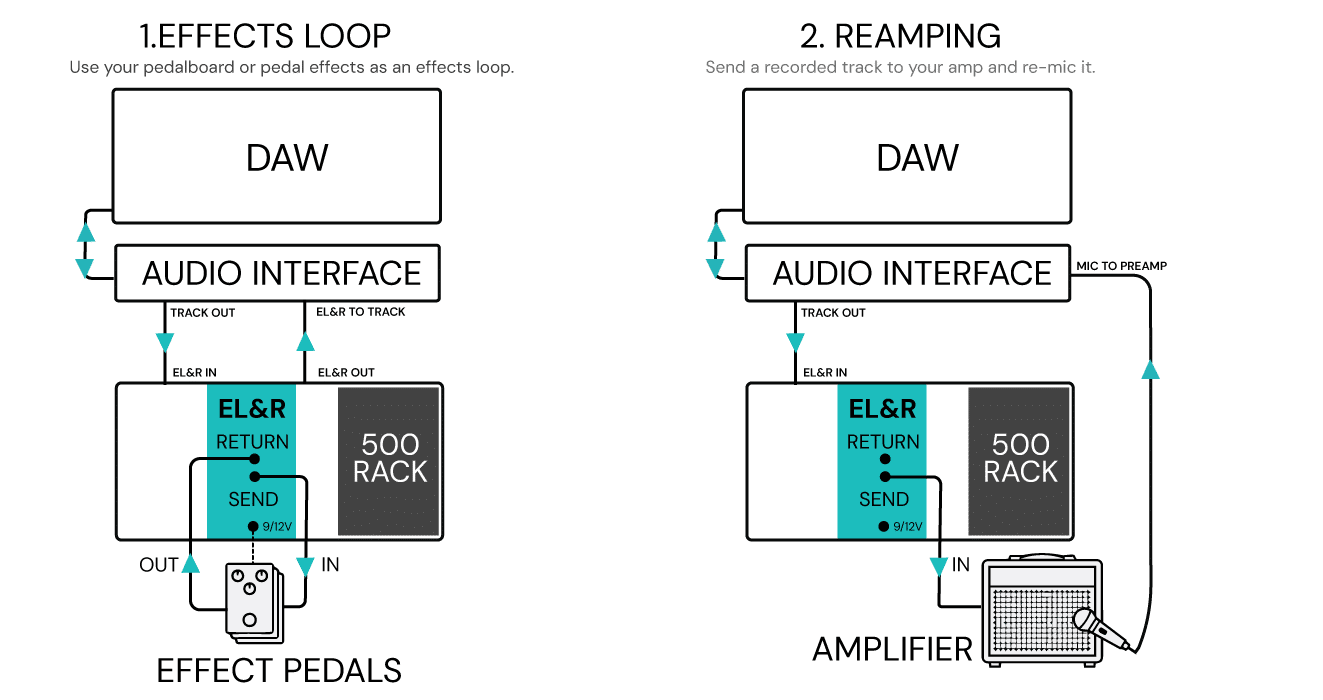

Assign a track to the 500 series input (which becomes the EL&R output) and connect a 1/4" cable to your guitar amp or effects. If reamping an amplifer, connect a microphone to your interface and record while playing back the source track.

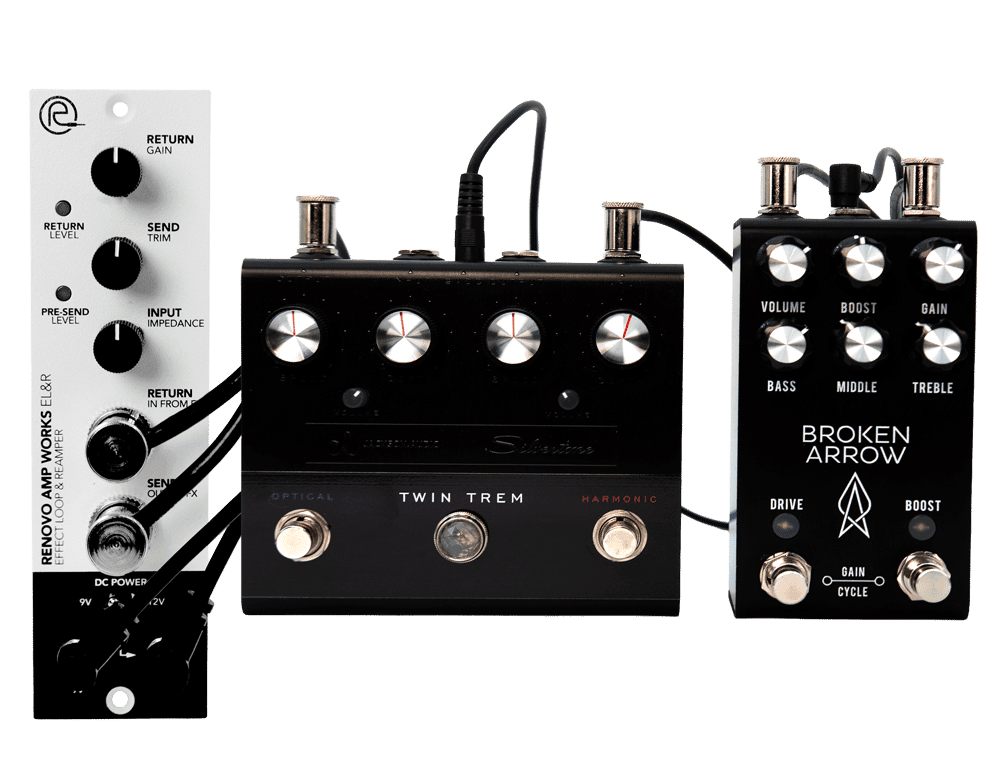

For reamping an effects loop, assign the track to the 500 series input. Connect the EL&R output to your effects input and then the output of the effects to the input on the front panel of the EL&R. Record as you would any 500 series module.

Yes. Use the inputs and outputs of your interface connected to the 500 series rack to route dry tracks out to the EL&R and back from the EL&R to your DAW.   Pro Tools, Reason, Studio One, Logic, Ableton, Reason, Reaper — whatever you use.

US orders typically ship within 2–3 business days. International shipping available.
